850mm High-Speed Leveling Rotary Shear Cut-to-Length Line
Designed for surface-sensitive home-appliance steel sheet and cold-rolled stainless steel coil, this 850mm high-speed leveling rotary shear cut-to-length line combines precision leveling, continuous flying shear cutting and automatic stacking in one integrated system. The reference configuration is engineered for 0.3–2.0mm material and coil widths up to 850mm. As a high-speed rotary shear cut-to-length line, it cuts continuously with the moving strip — compare the 1650 Type Rotary Shear Cut-to-Length Line and the 1350 Type Rotary Shear Cut to Length for wider options, and see our high-end flying shear cut-to-length line shipment to Vietnam for a recent delivery case.
Reference Technical Parameters
| Applicable material | Stainless steel 430 / 460 (reference configuration) |
|---|---|
| Material thickness | 0.3–2.0mm |
| Material width | 100–850mm |
| Maximum coil weight | 15t |
| Coil outside / inside diameter | ≤ Ø1800mm / Ø508mm |
| Cut length range | 137–1800mm |
| Line speed | 0–80m/min, continuously variable |
| Strip threading speed | 0–15m/min |
| Reference output | Up to 160 cuts/min, subject to material and cut length |
| Approximate installed capacity | 200kW |
| Reference footprint | 21m × 6m |
All data above are from a reference technical agreement. Final configuration, tolerances, output and auxiliary equipment must be confirmed with XIONGJIN engineering according to the material grade, surface requirements, cut length and automation scope.
Key Equipment and Process

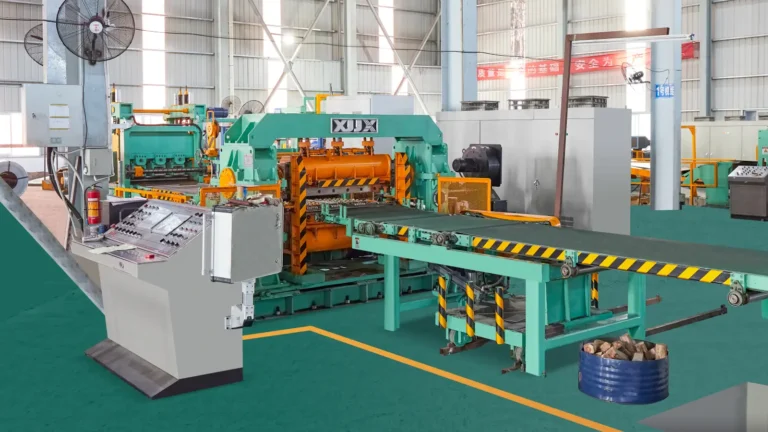

Coil car → cantilever uncoiler with coil-opening device → 21-roll 6HI leveler → pinch and measuring unit → servo-driven rotary/flying shear → belt conveyor → dual stacking stations → side discharge roller conveyor.
- 21-roll 6HI leveler with independently driven leveling rolls for surface-sensitive sheet.
- Servo-driven rotary/flying shear cuts continuously with the strip, avoiding a stop-and-cut cycle.
- Dual stacking stations help maintain continuous production during stack changeover.
- Surface-protection equipment may include polyurethane-covered rollers, chrome-plated rolls, air support and optional film/paper application.
850mm Rotary Shear Cut-to-Length Line Video
Contact XIONGJIN to confirm the material grade, thickness range, cut lengths, surface-protection requirements and automation options for your project.
