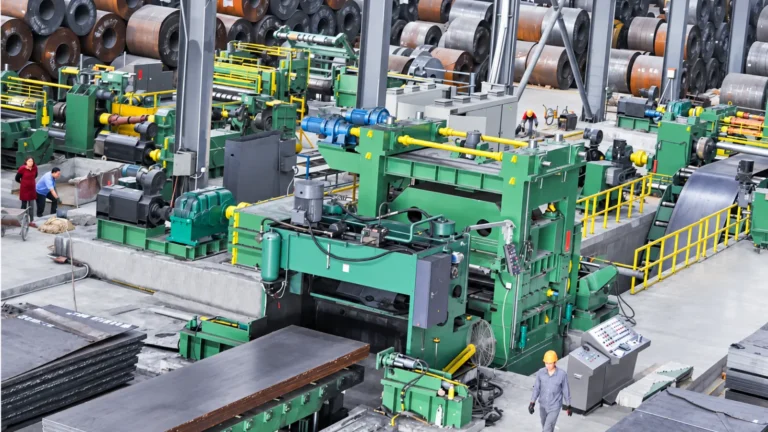

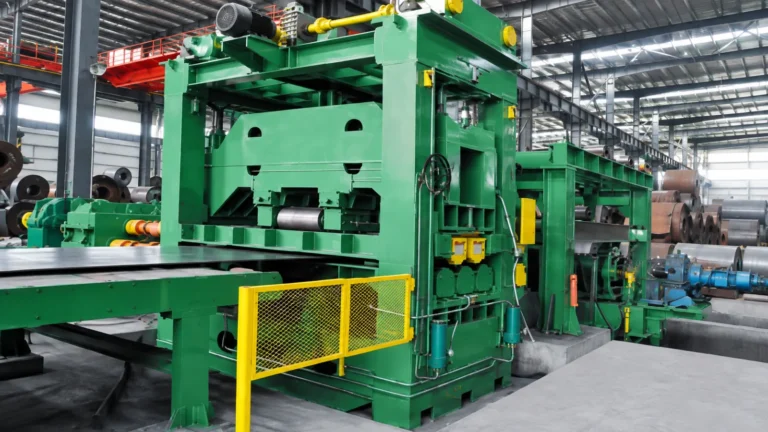

25mm × 2200mm Extra-Thick Plate Leveling Cut-to-Length Line with Edge Trimming
Designed for heavy-gauge steel coil processing, this XIONGJIN line combines plate leveling, edge trimming and cut-to-length processing in one engineered production system. The reference H-25-2200NC configuration is intended for 8–25mm plate and coil widths up to 2200mm. Built for extra-thick plate, this stop shear cut-to-length line sits in our cut-to-length lines range alongside the 2200mm 30mm Hot Rolled Plate Leveling Cut-to-Length Line with Stop Shear — see how to design a heavy-gauge cut-to-length line for 20 mm-class steel coil for engineering guidance.
Reference Configuration
| Model | H-25-2200NC |
|---|---|
| Plate thickness | 8.0–25.0mm |
| Maximum coil weight | 35t |
| Coil width | 1000–2200mm |
| Line speed | 0–40m/min |
| Approximate installed capacity | 950kW |
| Reference footprint | 65 × 18m |
All parameters above are a reference configuration. Final capacity, layout and performance depend on the material grade, incoming coil condition, cut length, tolerances, output handling and selected options. Confirm the final configuration with XIONGJIN engineering.
Key Capabilities

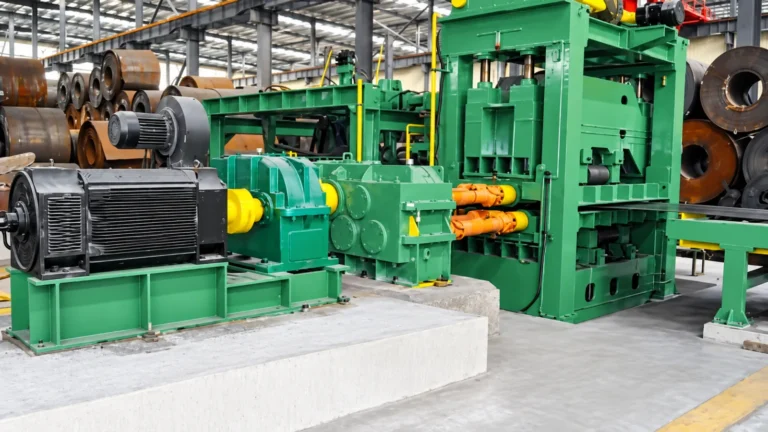

- Heavy-gauge leveling for 8–25mm plate processing
- 2200mm maximum reference coil width
- Integrated edge trimming and cut-to-length processing
- Reference line speed up to 40m/min
- Configured for coils up to 35t in the reference specification
Typical Process Flow
Coil loading and uncoiling → leveling → edge trimming → cross-cutting → stacking. The final line sequence and auxiliary equipment are confirmed during project engineering.
Production Video
XIONGJIN MACHINERY WORKSHOP
Explore our workshop environments and finished-equipment handling through the XIONGJIN MACHINERY video series.
Finished Goods and Logistics Workshop
Industrial Surface Finishing Workshop
Machinery Assembly Workshop
CNC Machining Workshop
Contact XIONGJIN to discuss the required material grade, thickness range, output format and automation options for your project.
