Model: H-3.0-1650NCR

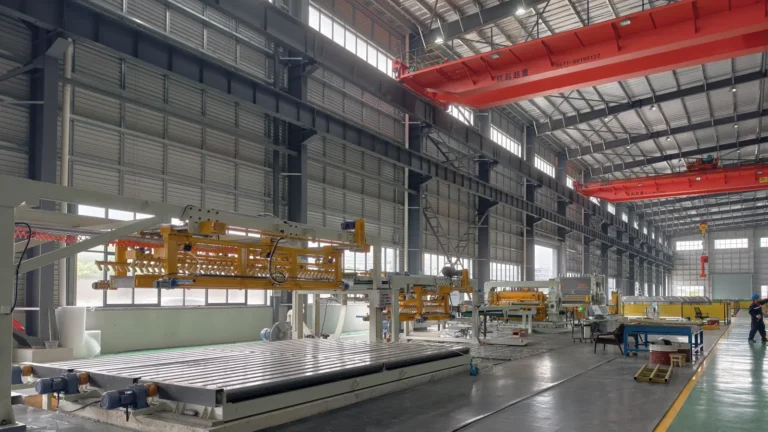

The XIONGJIN 1650 Type Rotary Shear Cut-to-Length Line is a continuous coil-processing solution for hot-dip galvanized sheet and cold-rolled sheet. The referenced configuration is designed for 0.3-3.0 mm material, widths from 300 mm to 1650 mm, and coils up to 25 t.
For this line, the rotary-shear designation describes a double flying-shear configuration: the upper and lower blades perform a synchronized rotary cut while following the moving sheet. This is a continuous flying-shear arrangement rather than a stop-shear system. Final equipment selection must be confirmed against the customer’s material, coil condition, required output and local installation conditions.
Raw Material
| Material | Hot-dip galvanized sheet; cold-rolled sheet |
|---|---|
| Coil thickness | 0.3-3.0 mm |
| Coil width | 300-1650 mm maximum |
| Coil outside diameter | Φ650-Φ2200 mm |
| Coil inside diameter | Φ508 mm; expandable to Φ610 mm with a rubber sleeve |
| Maximum coil weight | 25 t |
| Material tensile strength | σb ≤400 MPa |
Finished Product
The line converts coil into flat cut-to-length sheets and transfers them to automatic stacking and unloading equipment. The referenced configuration provides two stacking paths with fixed-length capability of 4,000 mm for Stacker No. 1 and 6,000 mm for Stacker No. 2.
| Length tolerance at L = 2 m | ≤ ±0.3 mm for 1.0 mm sheet at constant speed; ≤ ±0.5 mm during acceleration or deceleration |
|---|---|
| Diagonal tolerance at L = 2 m | ≤ ±0.5 mm for 1.0 mm sheet at constant speed |
| Leveling accuracy | ≤ +1.0 mm/m² |
| Shearing burr | ≤0.03 mm for sheet ≤1 mm; ≤5% of sheet thickness for sheet >1 mm |
| Stacking accuracy | Layer misalignment ≤1 mm |
Key Technical Parameters
| Model | H-3.0-1650NCR |
|---|---|
| Shearing line speed | 0-70 m/min, stepless speed regulation |
| Threading speed | 0-15 m/min |
| Installed capacity | Approximately 330 kW |
| Power supply | 380 V / 50 Hz / 3 phase |
| Working elevation | 1100 mm |
| Reference footprint | Approximately 30 m × 10 m |
Production Line Configuration
- V-type material storage platform
- Hydraulic loading trolley

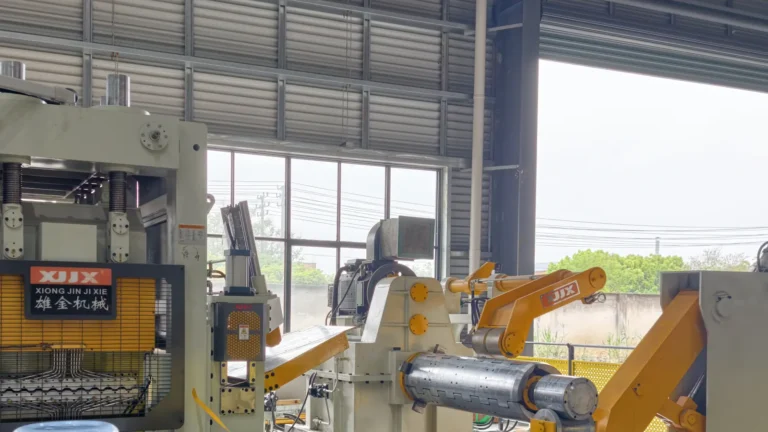

- Hydraulic cantilever uncoiler with tension control and auxiliary support
- Material receiving shovel head and plate-head straightener
- Pinch conveyor
- 6-High precision leveling machine
- Looping pit and side-guide correction device
- 5-roll cut-to-length measuring machine
- Double flying shear with rotary cutting motion
- PVC belt conveyor

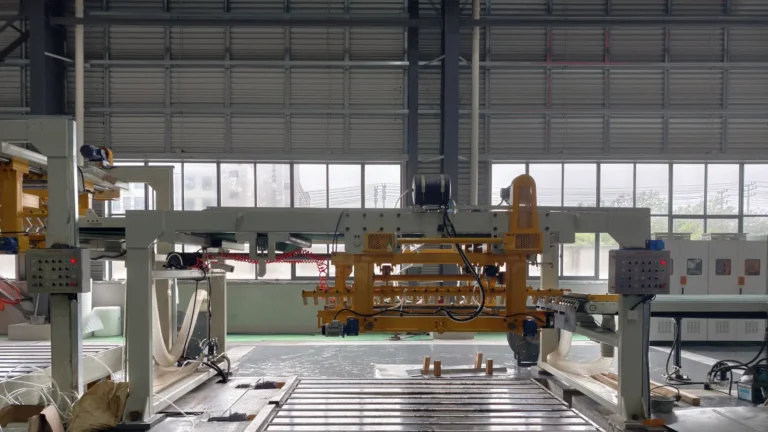

- Automatic stacking device with monitoring and piece-counting functions
- Unloading roller conveyor, hydraulic system, pneumatic system and electrical system
The 6-High precision leveler in this configuration uses two layers of work rolls, two layers of intermediate rolls and two layers of reinforcing rolls. Separate inlet and outlet adjustment supports leveling of coil-borne curvature before cutting.
Double Flying Shear with Rotary Cutting Motion
The double flying shear receives measured sheets from the NC cut-to-length section. The upper and lower movable blade holders use a paired-crankshaft rotary motion and a 150 kW servo drive. During cutting, the blades move synchronously with the sheet so the process does not require the strip to stop. External adjustment of the cross-cut blade clearance supports changeover for different sheet thicknesses, while centralized forced lubrication supports long-term operation.
Layout Reference

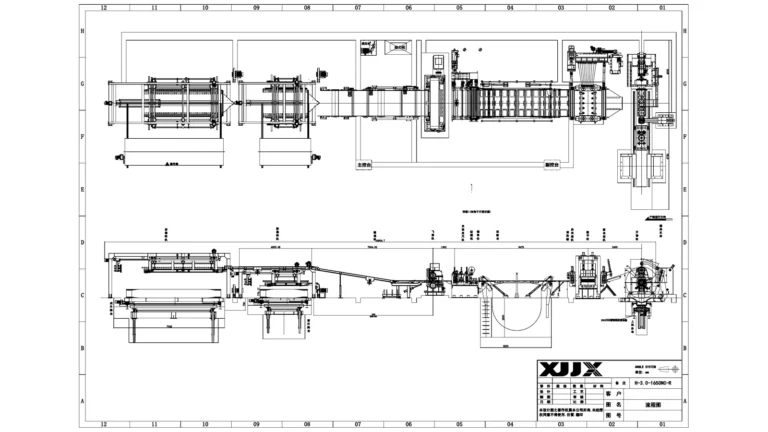

The layout drawing below is the supplied H-3.0-1650NC-R reference configuration. It shows the material flow from coil loading and uncoiling through leveling, looping, cut-to-length measurement, flying shear, conveying and stacking. Operational direction, color, final floor plan and peripheral equipment remain subject to customer confirmation and XIONGJIN engineering review.
Project Planning with XIONGJIN
Every cut-to-length line should be configured around the actual coil grade, thickness band, incoming shape, surface-protection requirements, output length range and stacking method. XIONGJIN can review these conditions before finalizing the uncoiler, leveler, flying-shear and stacking configuration. For a related application reference, see the 1650 Type Flying Shear Line project, or browse the XIONGJIN product range.
