Designed for stainless steel coil processing, this 450 type double rotary flying shear cut-to-length line combines precision uncoiling, leveling, continuous flying-shear cutting and automatic stacking in one compact system. The reference configuration handles 0.3–3.0 mm stainless steel in widths from 30 to 400 mm at line speeds up to 80 m/min. As a high-speed rotary shear cut-to-length line, it cuts continuously with the moving strip — compare the 850mm High-Speed Leveling Rotary Shear Cut-to-Length Line and the 1350 Type Rotary Shear Cut to Length for wider options.
Reference Technical Parameters
| Applicable material | Stainless steel (reference configuration) |
| Material thickness | 0.3–3.0 mm |
| Material width | 30–400 mm |
| Coil inside diameter | Ø508 mm |
| Coil outside diameter | ≤ Ø1500 mm |
| Maximum coil weight | 8 t |
| Line speed | 0–80 m/min, continuously variable |
All data above are from a reference configuration. Final configuration, tolerances, output and auxiliary equipment must be confirmed with XIONGJIN engineering according to the material grade, surface requirements, cut length and automation scope.
Key Equipment and Process

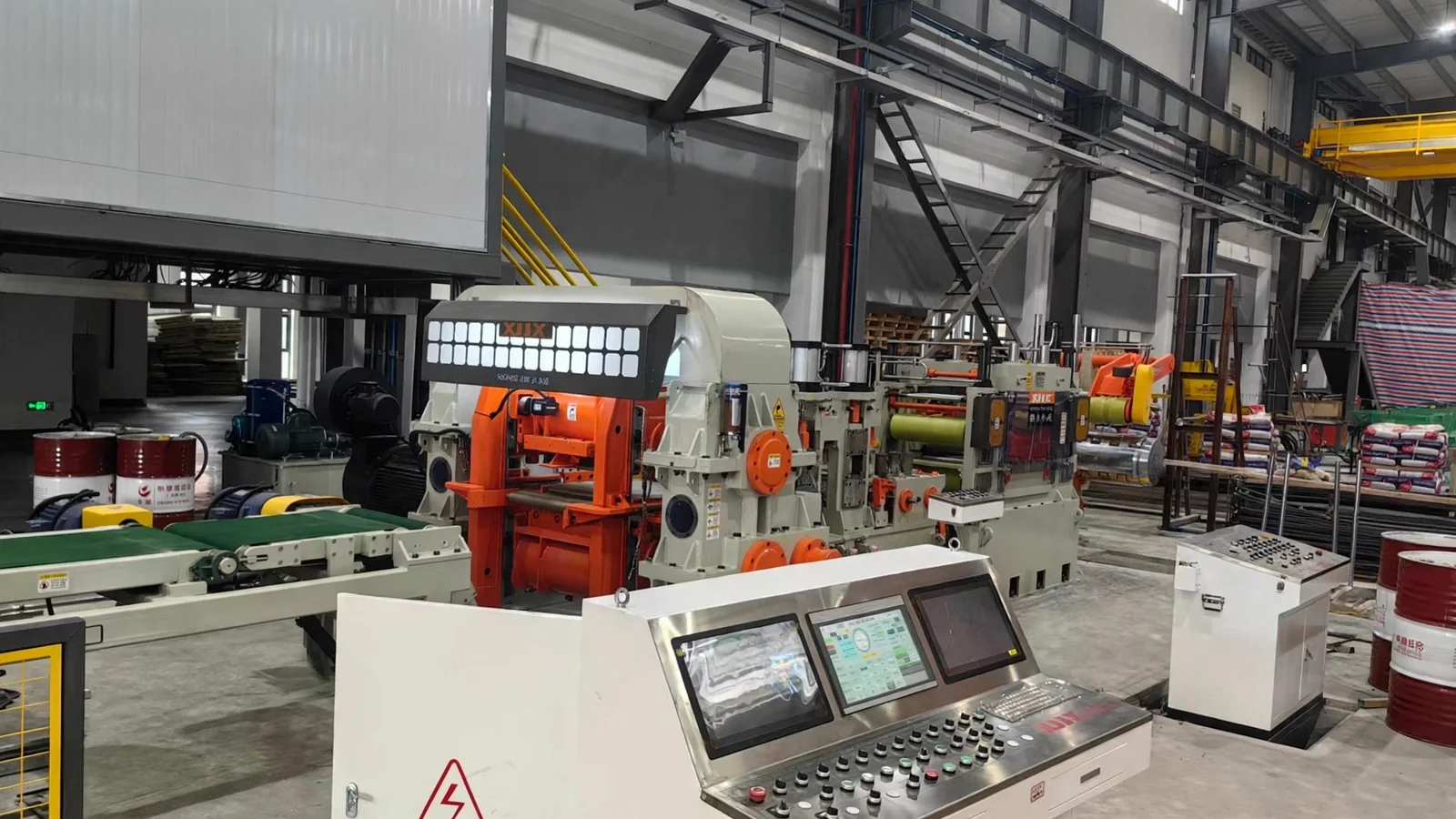

Coil car → hydraulic uncoiler → precision leveler → servo-driven double rotary flying shear → belt conveyor → automatic stacking station.

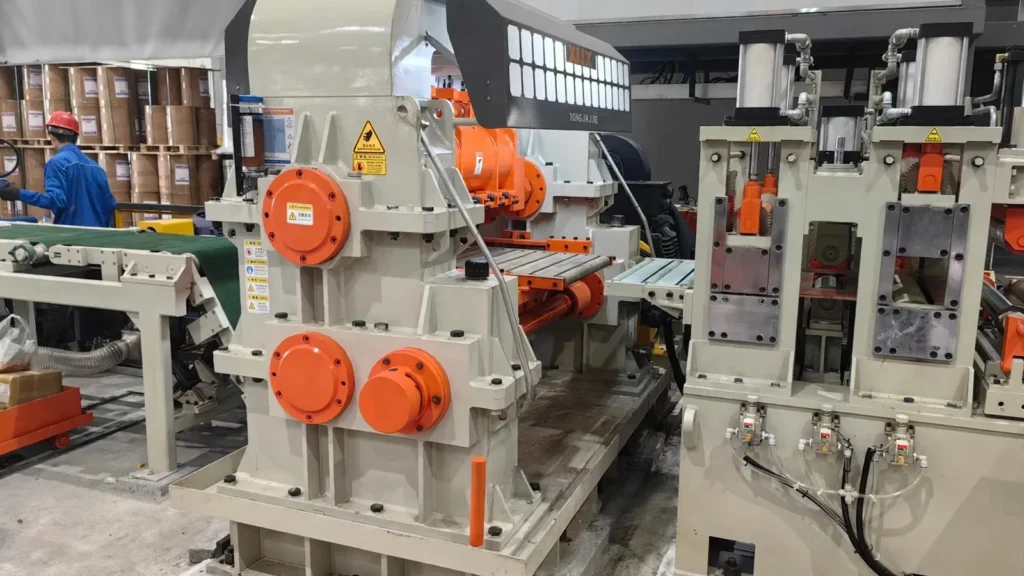

- Double rotary flying shear cuts continuously with the moving strip, avoiding the stop-and-cut cycle.

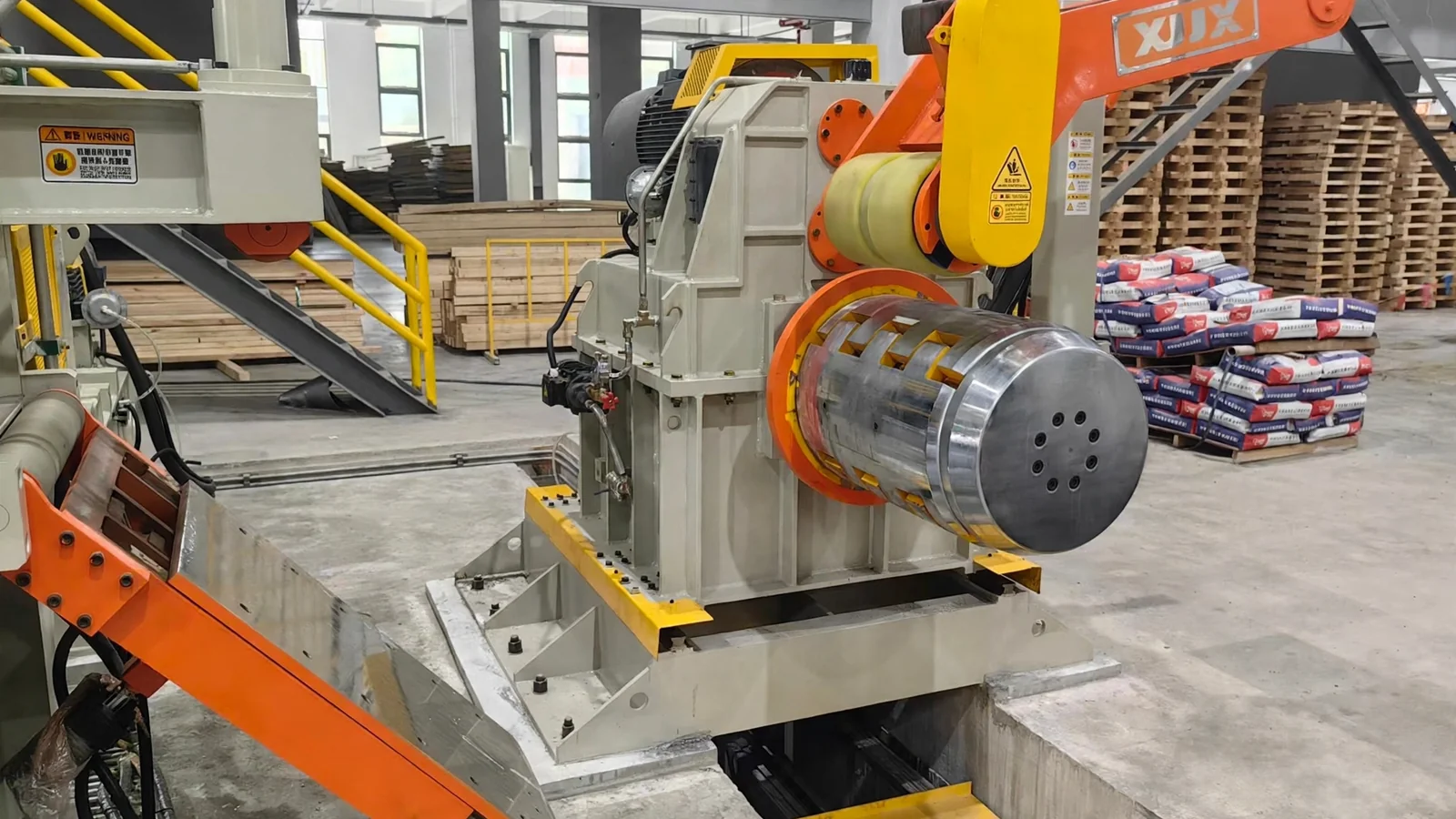

- Hydraulic uncoiler handles coils up to 8 t with Ø508 mm inside diameter.

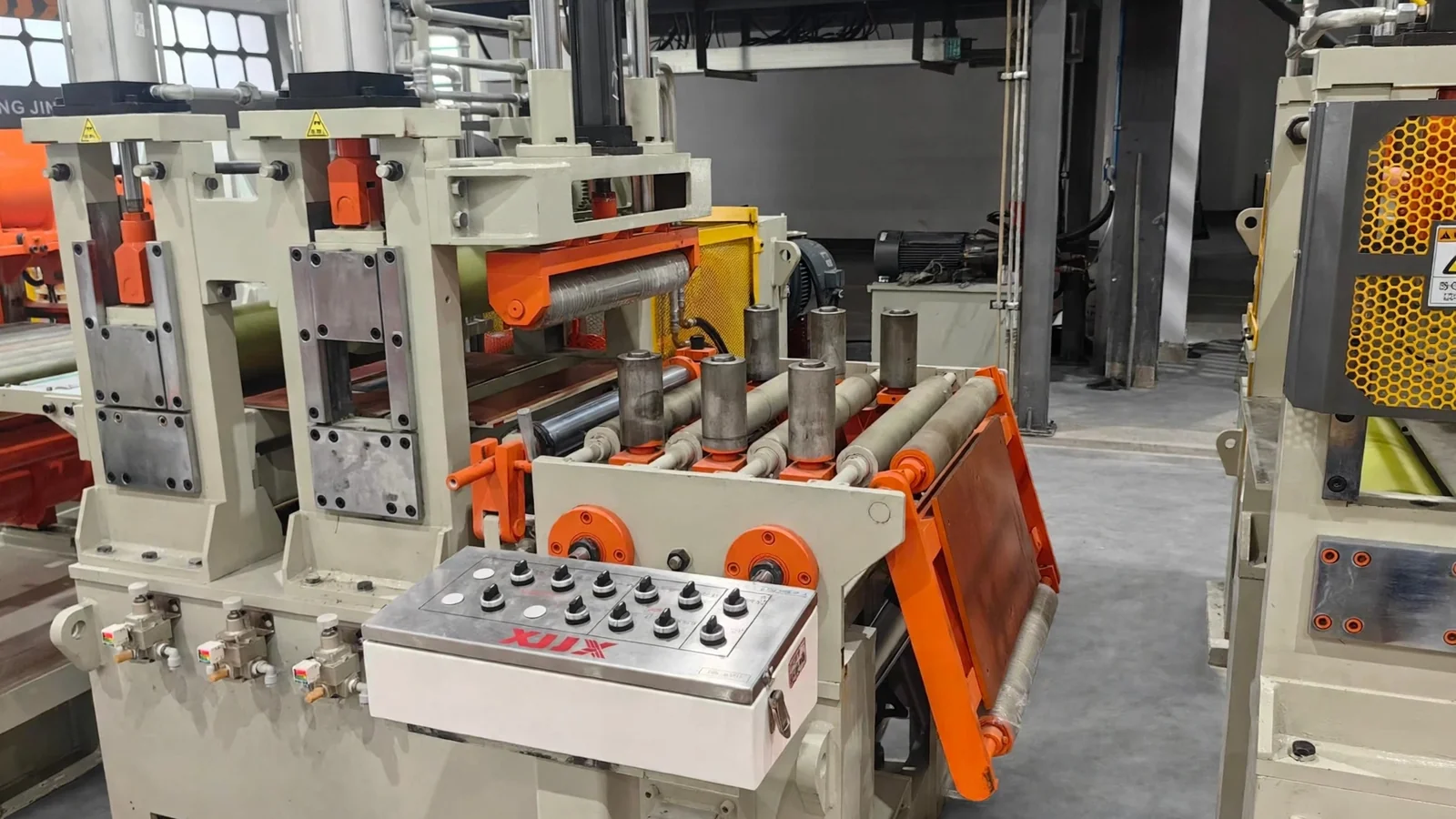

- Precision leveler delivers flat, surface-critical stainless sheet.

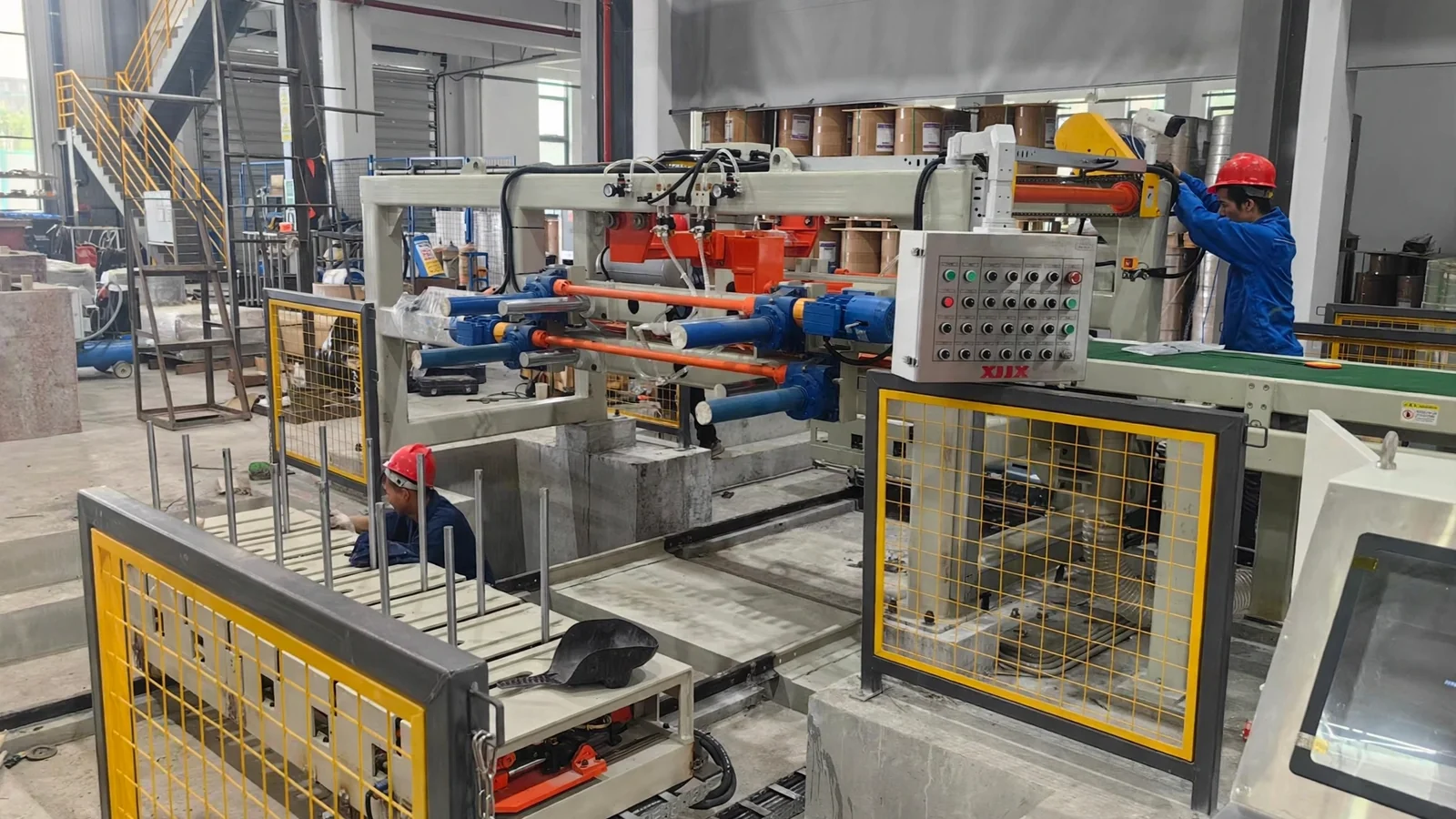

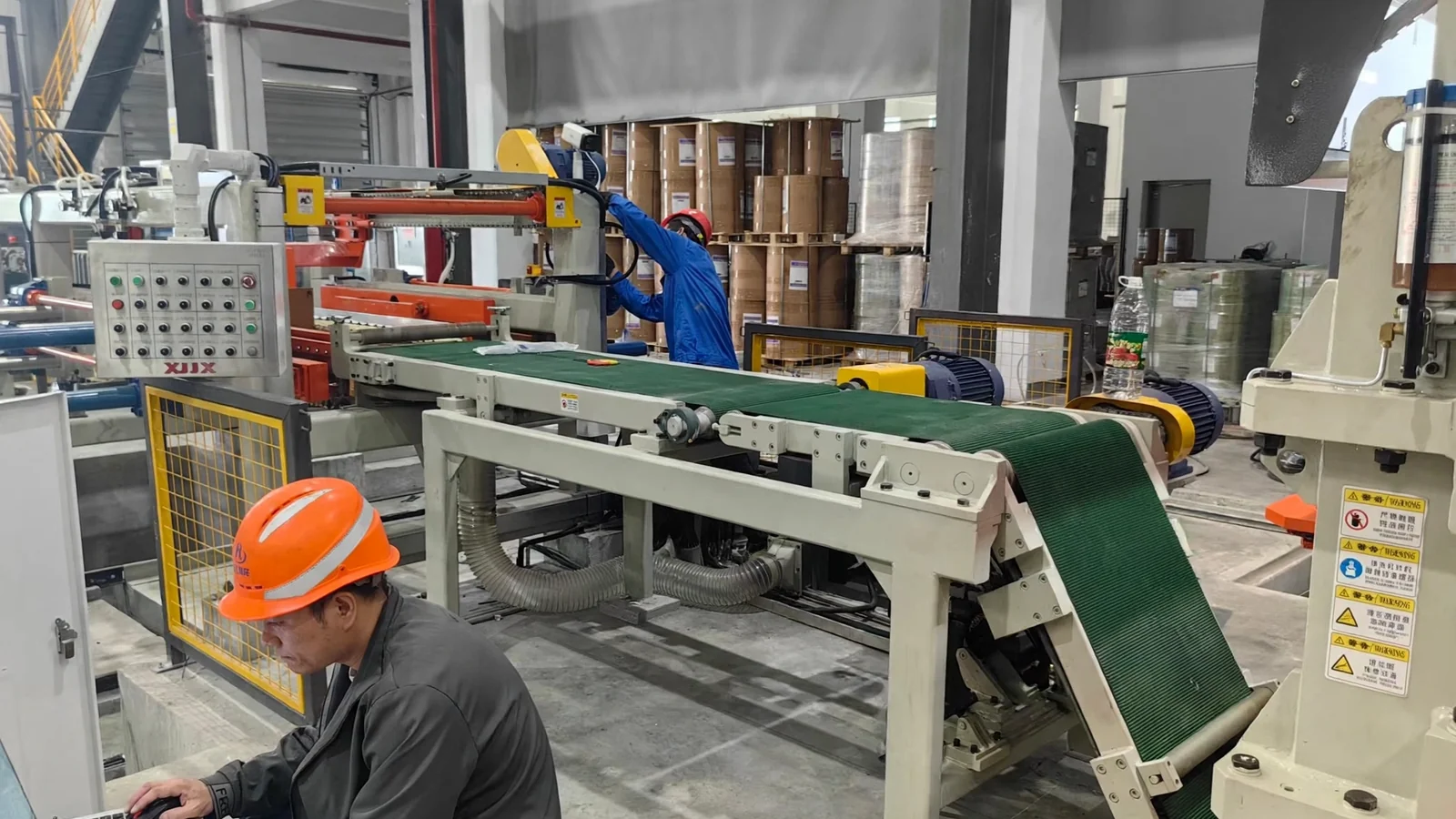

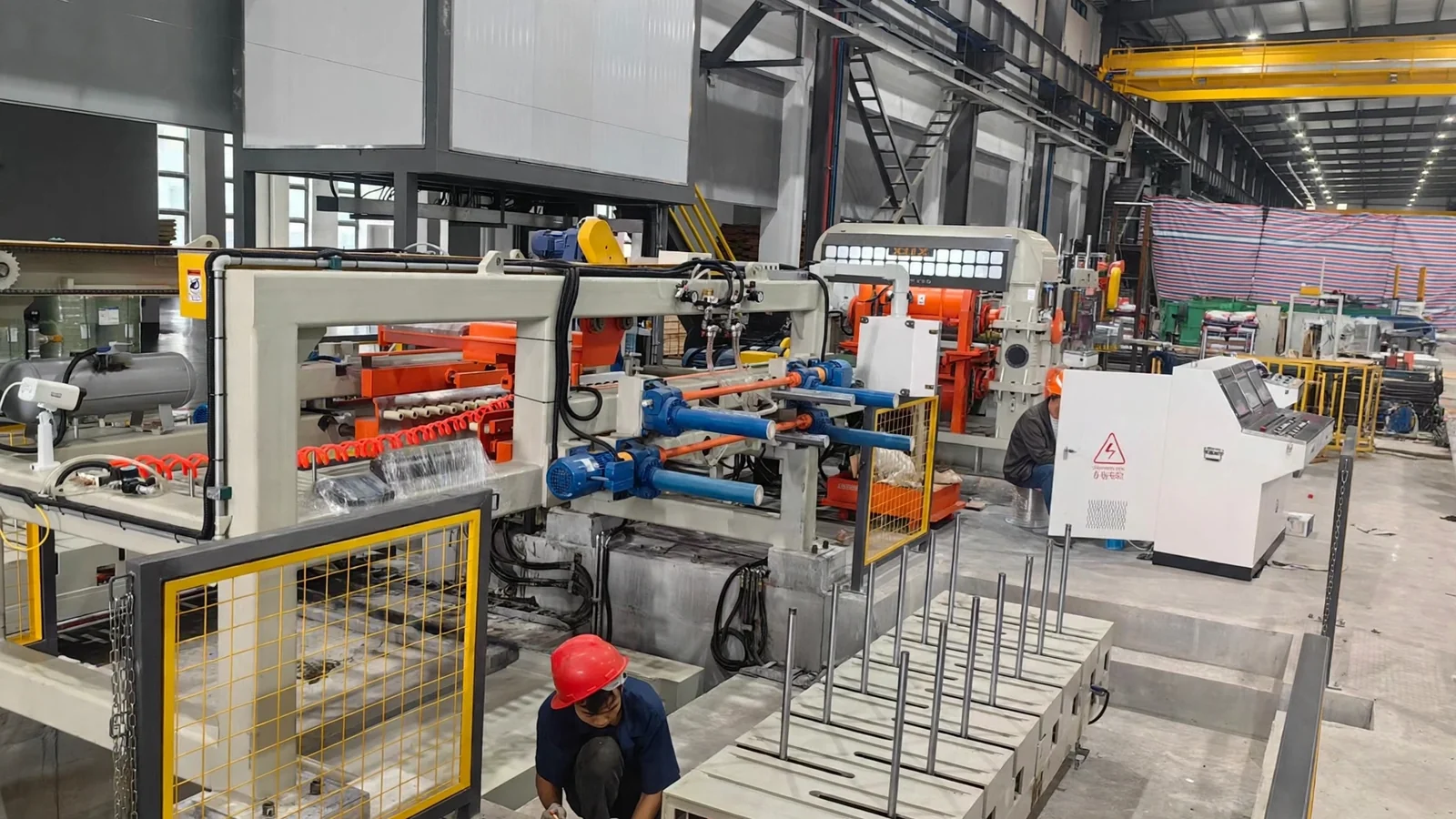

- Belt conveyor and automatic stacking protect stainless surfaces during handling.
Contact XIONGJIN to confirm the material grade, thickness range, cut lengths, surface-protection requirements and automation options for your project.
