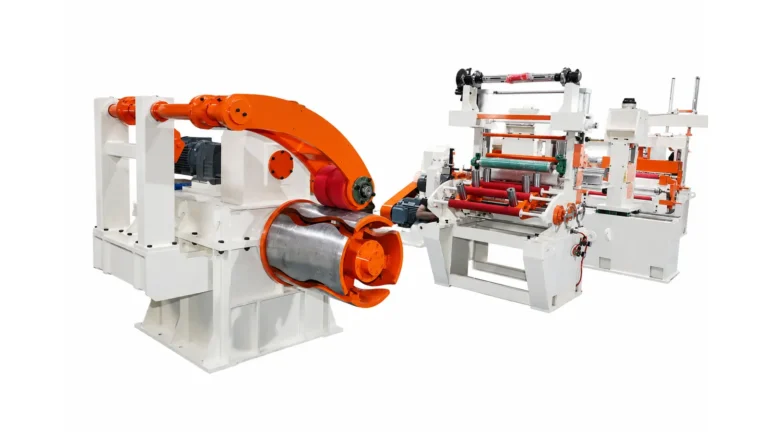

The XIONGJIN 650 High-Precision Slitting Line is designed for precision processing of copper strip and stainless-steel strip. The supplied configuration covers 0.05-0.50 mm material, coil widths up to 650 mm, coil weights up to 5 MT and line speeds up to 150 m/min, with capacity for up to 40 slit strips. Built for copper and stainless strip, this thin gauge slitting line shares its high-precision tooling concept with the 650 Type Thin-Gauge High-Precision Slitting Line and the 1350 High Precision Slitting Line — see slitting burr control: how steel service centers protect edge quality for edge-quality best practices.
Product Overview
This thin-gauge slitting line is configured to slit coil into narrower strips with controlled entry alignment, precision slitting, strip tension and recoiling. It can be adapted to the customer’s finished-strip widths, coil dimensions, surface requirements and operating standard.
Material and Finished Product
| Applicable material | Copper strip and stainless-steel strip |
|---|---|
| Material thickness | 0.05-0.50 mm |
| Maximum coil width | 650 mm |
| Maximum coil weight | 5 MT |
| Line speed | Up to 150 m/min |
| Finished product | Precision slit strips recoiled on the recoiler |
| Maximum slit strips | Up to 40 strips, subject to material grade, finished-strip widths and tooling configuration |
Engineering note: The listed values are the supplied model parameters. Final slit widths, coil OD/ID, strip tension method, tooling design, electrical standard and optional equipment should be confirmed by XIONGJIN engineering before order release.
Production Video
Production video of the 650 high-precision slitting line.
Production Process
- Loading / unloading coil car
- Hydraulic decoiler
- Entry section and side guide
- Precision slitter
- Scrap winding
- Tension table
- Recoiling and strip separation
Major Equipment

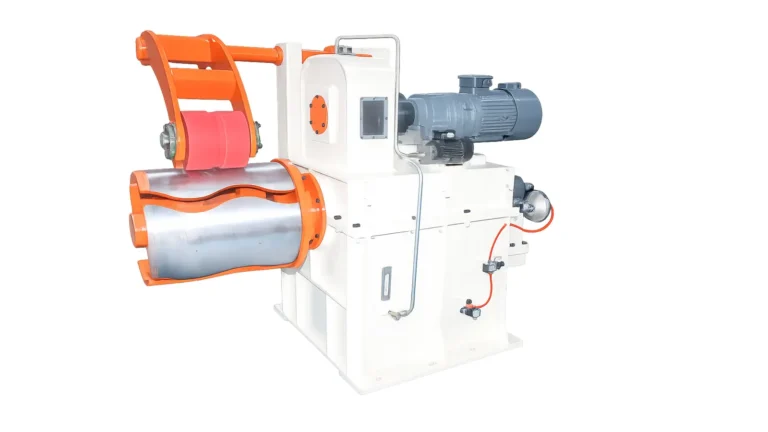

Hydraulic Decoiler
The hydraulic decoiler supports controlled coil payoff into the line. The coil car assists loading and unloading for efficient coil handling.

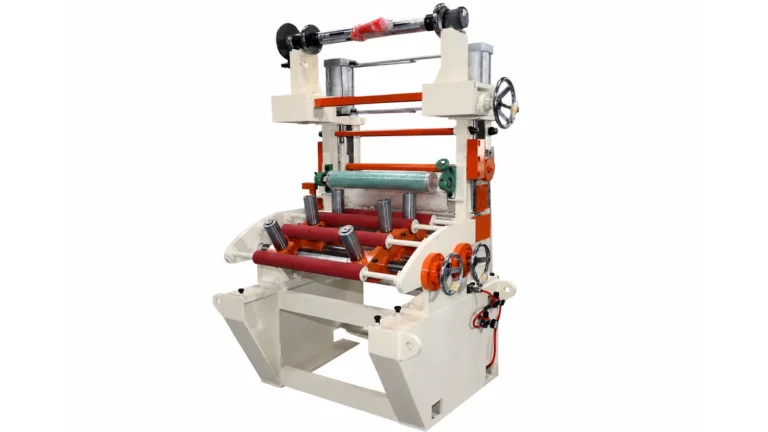

Side Guide and Entry Section
The side-guide section aligns the incoming strip before it enters the precision slitting head.
Precision Slitter
The precision slitter separates the strip into the programmed finished widths. Slitting tooling and the final strip arrangement are selected to suit the customer’s material and product requirements.
Scrap Winder
The scrap winder collects edge trim generated during slitting.

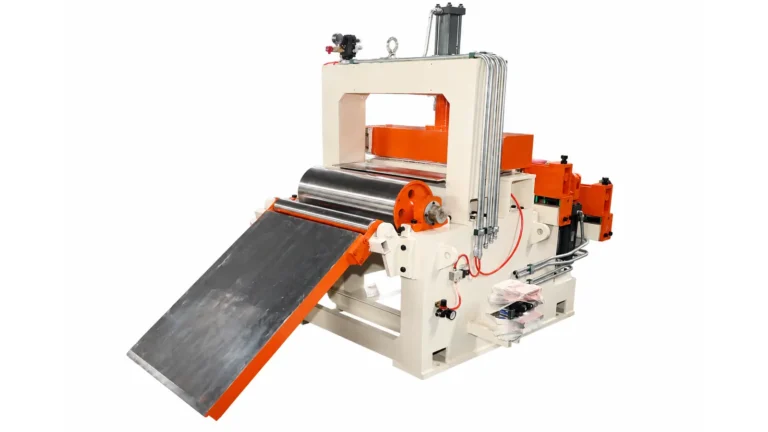

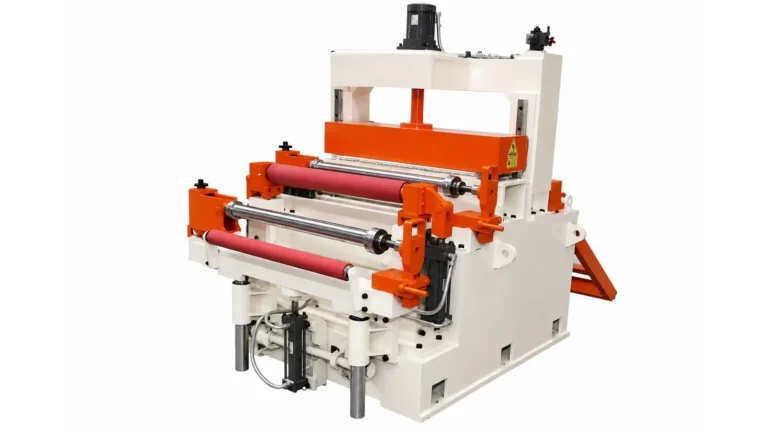

Tension Table
The tension table helps maintain stable strip tension before recoiling.

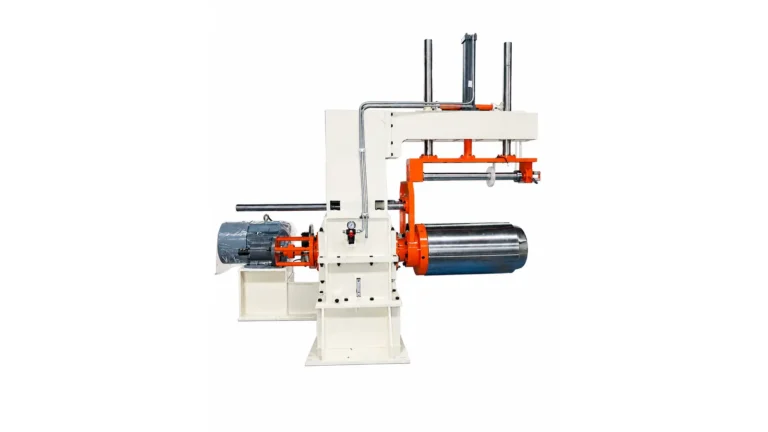

Recoiler
The recoiler winds the finished slit strips into orderly coils for downstream handling.
Equipment Gallery
For tailored slitting-line configuration, please provide the coil material, thickness range, coil ID/OD, finished-strip schedule, edge-quality requirement and preferred electrical standard.
