Stainless Steel Coil Processing
1350 High Precision Slitting Line
The XIONGJIN 1350 High Precision Slitting Line is a reference configuration for slitting cold-rolled stainless steel coil in 200, 300 and 400 series. The line integrates controlled uncoiling, entry conditioning, precision slitting, tension control and bottom recoiling to produce ordered slit coils.
The final equipment scope, knife arrangement, operating speed and acceptance criteria are confirmed against the buyer’s material grade, coil dimensions, slit pattern and finished-coil requirements. As part of our thin gauge slitting line range, this configuration shares its precision slitting platform with the 1650 Thin-Gauge Slitting Line and the 650 Type Thin-Gauge High-Precision Slitting Line.
1350 High Precision Slitting Line — Operation Video
Watch the 1350 high precision slitting line in operation.
Raw Material Parameters
| Applicable Coil Material | Cold-rolled stainless steel coil, 200 / 300 / 400 series |
|---|---|
| Material Thickness | 0.3–4.0 mm |
| Coil Width | 300–1300 mm maximum |
| Coil Outside Diameter | 1850 mm maximum |
| Coil Inside Diameter | 508 mm |
| Maximum Coil Weight | 15 MT |
| Reference Mechanical Properties | Tensile strength σb ≤ 385 MPa; yield strength σs ≤ 325 MPa |
Finished Coil and Strip Parameters
| Finished Coil Inside Diameter | 508 mm |
|---|---|
| Finished Coil Outside Diameter | ≤ 1800 mm |
| Maximum Finished Coil Weight | 15 MT |
| Maximum Number of Slit Strips | 30 strips |
| Minimum Slit Width | 15 mm |
| Finished Strip Width Tolerance | ±0.1 mm |
| Burr | ≤ 3% of material thickness |
| Staggered Layers | ≤ ±0.5 mm |
| Coil Telescoping Tolerance | ≤ ±2.5 mm, excluding the first five wraps; measured at finished coil outside diameter ≤ 1500 mm |
| Camber | ≤ 0.25 mm over 1000 mm; ≤ 0.5 mm over 2000 mm |
| Trimmed Waste Edge Width | 5–15 mm |
| Surface Quality | No additional processing defects on the finished strip surface after processing |
Line Performance and Installation
| Reference Slitting Line Speed | 0–200 m/min |
|---|---|
| Threading Speed | 0–15 m/min |
| Power Supply | 380 V ±10%, 50 Hz, 3-phase |
| Installed Power | Approximately 320 kW |
| Slitting Method | Driven slitting |
| Recoiling Method | Bottom winding |
| Slitting Blade Holder | 1 set |
| Operating Personnel | 1 technical worker and 2–3 general workers |
| Reference Footprint | Approximately 25–30 m long × 12 m wide; final layout to be confirmed |
| Line Colour and Operating Direction | To be confirmed by the buyer |
Reference speeds and installation data depend on material, slit pattern, coil dimensions and final line layout.
Typical Equipment Configuration
- Coil storage platform
- Loading trolley with protective cover plate
- Hydraulic cantilever uncoiler with tension control and hydraulic auxiliary support
- Pinch conveyor and 5-roll rough leveler
- Front cropping shear and waste trolley
- Front looping pit
- Pinch device
- Side guide correction device
- Precision slitting machine
- Optional second slitting machine
- Vertical trim-waste winder and plate-tail clamping device
- Rear looping pit
- Strip separating device
- Plate-type tension station
- Edge-burr pressing unit
- Rear-end cropping shear
- Side guide roll device
- Finished-product recoiler with hydraulic auxiliary support, sunken type
- One-turn rotating material-feeding arm
- Unloading trolley with protective cover plate
- Hydraulic system
- Pneumatic system
- Electrical system

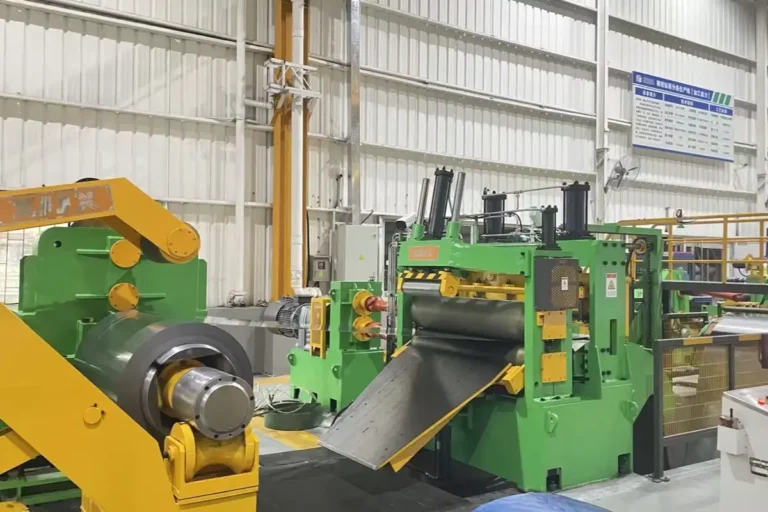

Equipment Detail
Process Flow Diagram

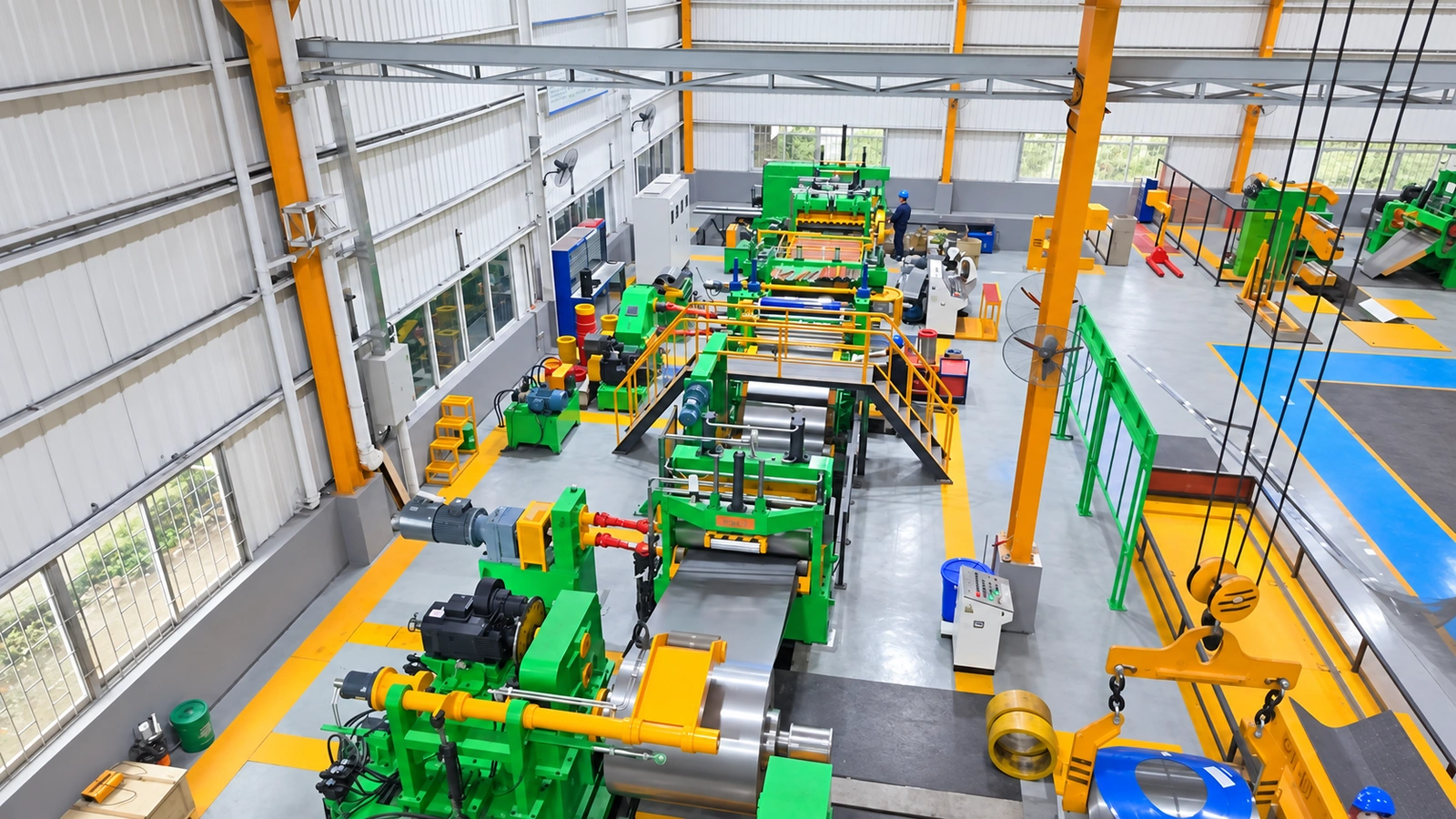

XIONGJIN MACHINERY WORKSHOP — FINISHED PRODUCT
See finished XIONGJIN equipment in the workshop and delivery-ready product area.
