Product Overview

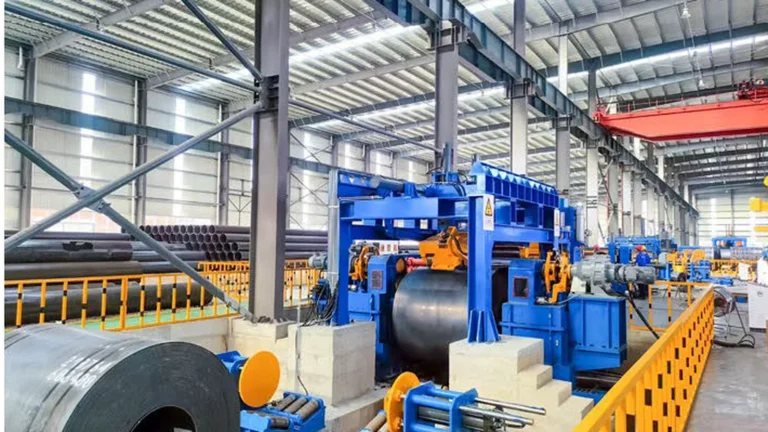

The XIONGJIN 20mm × 2000mm Heavy Gauge Dual Slitter Line is a heavy-duty coil processing line for thick plate slitting. Model Z-18-2000 is configured for a documented plate thickness range of 4.0–18.0 mm, plate widths of 800–2000 mm, and a maximum coil weight of 35 ton. The line uses a dual slitter / dual blade-holder configuration for high-load production requirements. As a heavy gauge slitting line for thick plate, this model complements the 14mm × 2000mm Heavy Gauge Dual Blade Holder & Dual Coiler Slitting Line in our dual slitter line range — see the heavy-duty 32mm slitting line commissioning in Indonesia for a field reference.
Key Features
- Heavy-gauge coil processing for 4.0–18.0 mm plate thickness.
- Dual slitter / dual blade-holder configuration.
- High level of automation.
- High production efficiency.
- Heavy-duty line layout for demanding coil-processing environments.
- Suitable for high-load production requirements.
Technical Parameters
| Parameter | Value |
|---|---|
| Model | Z-18-2000 |
| Plate Thickness | 4.0–18.0 mm |
| Max. Coil Weight | 35 ton |
| Plate Width | 800–2000 mm |
| Slitting Speed | 0–30 / 0–80 m/min |
| Approx. Capacity | 1100 kW |
| Footprint | 50 × 17 m |
Machine Gallery

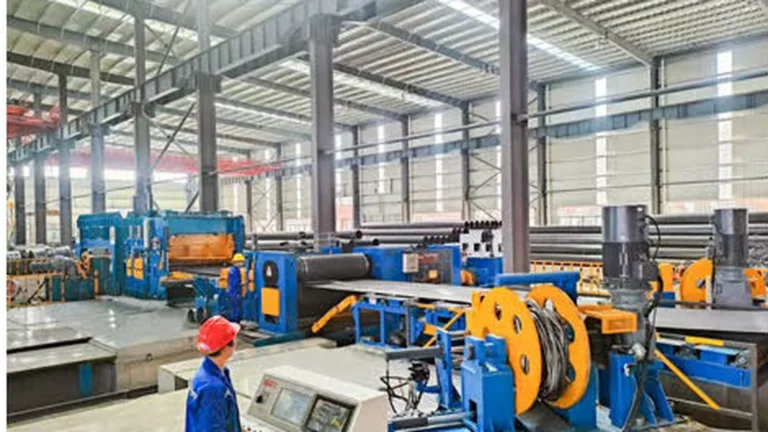

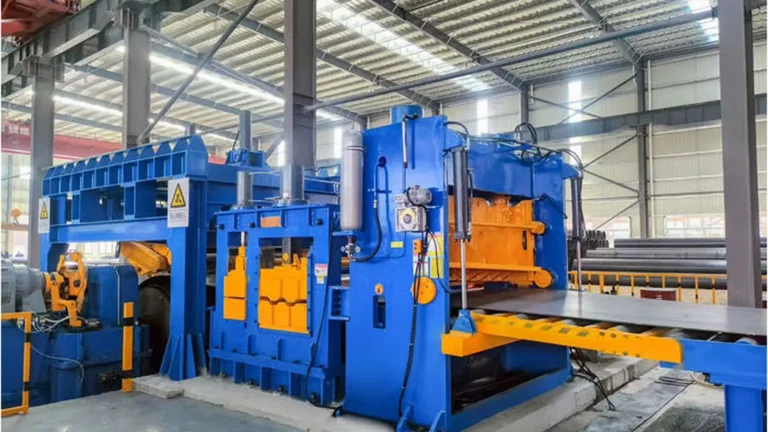

Dual Slitter Configuration
The dual slitter / dual blade-holder configuration is intended to support heavy-gauge strip processing within the documented line range. The final tooling arrangement, slit-width plan and line configuration should be confirmed against the customer’s material and production requirements.
Applications
- Heavy-gauge steel coil processing.
- Service center coil processing.
- High-load slitting applications.
Why XIONGJIN
XIONGJIN focuses on customized line configuration, heavy-duty engineering and automation-oriented design for production-focused coil processing solutions. The final line arrangement can be reviewed with the customer’s material, thickness, width, coil weight and strip-width requirements.
Request a Technical Proposal
Contact XIONGJIN for a technical proposal. Please provide the material, thickness range, width, coil weight, required strip widths and production speed so the line configuration can be reviewed accurately.
20mm Heavy Gauge Dual Slitter Line – Process Video
See the 20mm × 2000mm heavy-gauge dual slitter line in operation.
XIONGJIN MACHINERY WORKSHOP
Explore XIONGJIN’s manufacturing, assembly, machining and finished-goods workshop environment.
Finished Goods & Logistics
Surface Finishing Workshop
Assembly Workshop
CNC Machining Workshop
